Exploded view of the Pulsar Limited edition
Taken from "Times for America", written by Don Sauers, a former Hamilton employee,
published in 1992 by Sutter House, ISBN 0-915010-36-4.

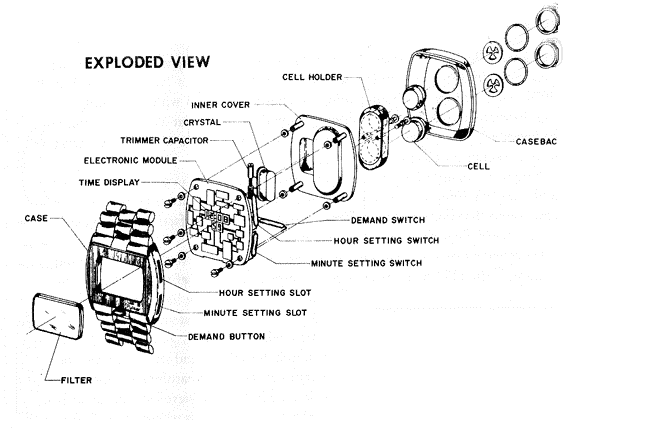

"An exploded view of the first Pulsar model production model. As can be seen, it had far fewer parts than conventional mechanichal or electrical watches - none of them moving parts.
Cases were hermetically sealed after final assebly and could not be taken apart for repairs. Cells could be replaced through the caseback. Note hour and minuite setting slots. These provided access for the setting magnet which was used when adjustment were necessary."

Thanks to Juergen Hofstaedter
